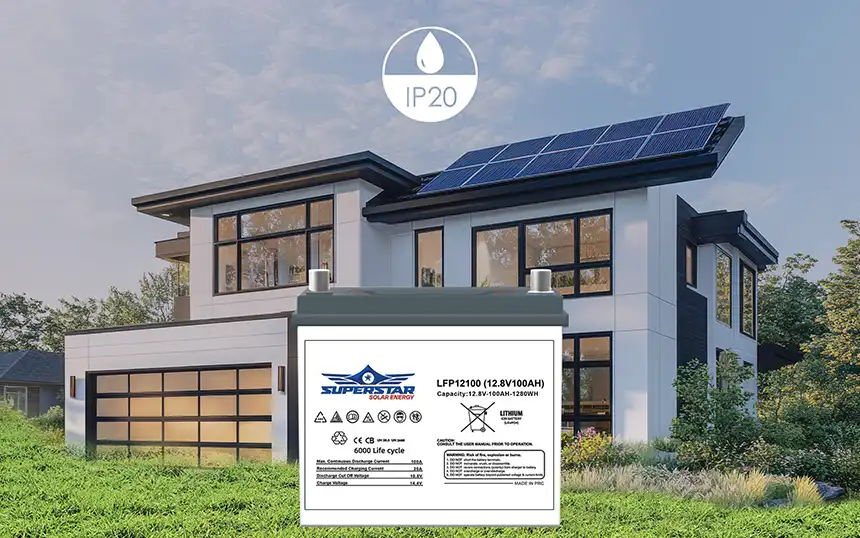

Superstar Battery | SS1-1.28kWh
| MODEL NAME | SS1-1.28kWh |
| ELECTRICAL SPECIFICATIONS | |
| Cell Type - Chemistry | LiFePo4 |
| Nominal Voltage | 12.8V |
| Amp. Hour Capacity | 100AH |
| Dimensions (W × H × D) mm | 258 × 166 × 215 |
| Weight | 9.8 ± 0.2 kgs |
| Installation Type | Floor Mounted |
| Case Material | ABS - Sealed |
| Case IP Rating | IP20 |
| Terminal Type | M8 |
| Series Connections | Max upto 51.2V |
| Storage Temperature | -10°C to 40°C |
| CHARGE SPECIFICATIONS | |
| Floating Charge Voltage | ≤13.8V |
| Boost Charge Voltage | ≤14.4V |
| Recommended Charge Current | ≤20A |
| Max Charge Current | ≤100A |
| Charge Current (0 to -10°C) | <0.1C |
| Charge Current (-20 to -10°C) | <0.05C |
| Charge Temperature | 0°C to 45°C |
| DISCHARGE SPECIFICATIONS | |
| Recommended Discharge Current | ≤100A |
| Max. Continuous Discharge Current | ≤120A |
| Max. Discharge Voltage | ≥10.4V |
| Discharge Temperature | -20°C to 60°C |
| BMS SPECIFICATIONS | |
| Version | Soft Version |
| Code | J-B04S100 |
| Balancing Voltage | 13.2 ± 0.2V |
| Balancing Current | 200 ± 50mA |
| Shortage Current | 1320 ± 300A |
| OTHERS | |
| Cycles | 6000 |
| Warranty | 3 Years |
3 Years Warranty
Safety
Simple Maintenance
极致安全
6000 Cycles
Max 16 Pcs in Parallel
Multipurpose
Fast Charge/Discharge
Built in BMS
15 Years Life Design(@20%DOD)
