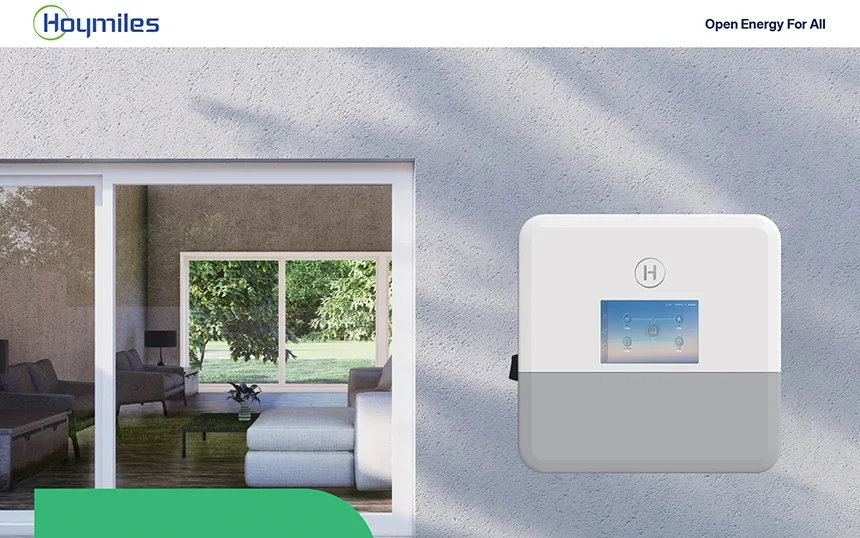

Hoymiles Single Phase Hybrid Inverter | HIS-6L-G3S
The HIS-6L-G3S is a high-performance single-phase hybrid inverter with excellent reliability.
The inteligent EMS function supports self-consumption mode, economy mode, backup mode, peak shaving mode, and time of use mode for multi-scenario application.
Monitoring management through S-Miles Cloud allows users to remotely diagnose and track system performance over time, maximizing the total solar power production and battery utilization.
| Model | HIS-6L-G3S |
| Battery | |
| Battery type | Li-ion/Lead-acid |
| Battery voltage range (V) | 40-60 |
| Max. charging/discharging current (A) | 135/135 |
| Max. charging/discharging power (W) | 6000/6300 |
| Charging strategy for Li-ion battery | Self-adaption to BMS |
| Charging curve | 3 Stages/Equalization |
| External temperature sensor | Optional |
| Communication | CAN |
| PV Input | |
| Recommended max. PV power (W) | 12000 |
| Max. input voltage (V) | 550 |
| Rated voltage (V) | 360 |
| Start-up voltage (V) | 100 |
| MPPT voltage range (V) | 90-500 |
| Max. input current (A) | 18/18 |
| Max. short circuit current (A) | 27/27 |
| MPPT number/Max. input strings number | 2/2 |
| AC Input and Output (On-grid) | |
| Rated output power (W) | 6000 |
| Max. output apparent power (VA) | 6600 |
| Max. continuous AC bypass current (A) | 50 |
| Grid form | L/N/PE |
| Rated AC output voltage/Range (V) | 220/154-264, 230/161-276, 240/168-288 |
| Rated grid frequency (Hz) | 50/60 |
| Max. output current (A) | 30 |
| Power factor | >0.99 (0.8 leading … 0.8 lagging) |
| AC Output (Backup) | |
| Rated output power (W) | 6000 |
| Max. output apparent power (VA) | 12000, 10s |
| Back-up switch time (ms) | <4 |
| Grid form | L/N/PE |
| Rated output voltage (V) | 220/230/240 |
| Rated output frequency (Hz) | 50/60 |
| Max. continuous output current (A) | 27.3 |
| THDv (@linear load) | <3% |
| Efficiency | |
| MPPT efficiency | 99.9% |
| Max. efficiency | 97.7% |
| EU efficiency | 97.0% |
| Protection | |
| Anti-islanding protection | Integrated |
| PV string input reverse polarity protection | Integrated |
| Insulation resistor detection | Integrated |
| Residual current monitoring unit | Integrated |
| AC overcurrent protection | Integrated |
| AC short circuit protection | Integrated |
| AC overvoltage and undervoltage protection | Integrated |
| Surge protection | DC Type II / AC Type II |
| General | |
| Dimensions (W × H × D) [mm] | 506 × 495 × 99 |
| Weight (kg) | <17 |
| Mounting | Wall mounting |
| Operating temperature (°C) | -25 to +65 (>45, derating) |
| Relative humidity | 0-95%, no condensing |
| Cooling | Natural convection |
| Topology (Solar/Battery) | Transformerless/High-frequency isolation |
| Altitude (m) | ≤4000 |
| Protection degree | IP66 |
| Noise (dB) | <35 |
| User interface | LED, App |
| Digital input/output | DRM, 2 × DI, 2 × DO |
| Communication | RS485, Wi-Fi/Ethernet (optional) |
| Certifications and Standards | |
| Grid connection standard | G98, G99, G100, EN 50549-1/-10, NF EN 50549-1/-10, CEI 0-21, PEA, MEA, IEC 62116, IEC 61727, IEC 60068, IEC 61683, DEWA |
| Safety/EMC standard | IEC 62109-1/-2, EN 61000-6-1/-2/-3/-4 |
Featuers
Easy Installation and space-saving with ultrathin and ultralight design
Double MPPT tracker, up to 18 A MPPT current
UPS level switching time <4 ms
Suppor multiple intelligent working modes, including peak shaving and 8x24h time of use
Integrated AI energy management with generator, heat pump and smart load
Max. 10 inverters in parallel for on-grid and off-grid system extension
